Cathodic Protection for a 100,000 Gallon Water Tank

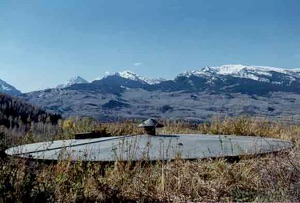

South view of a 100,000 gallon underground tank showing a conduit in which the interior anode header is routed to the rectifier

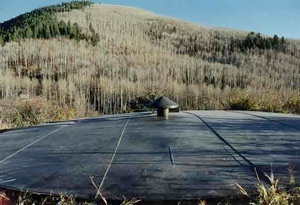

Easterly view of the tank and conduit recently installed on the roof

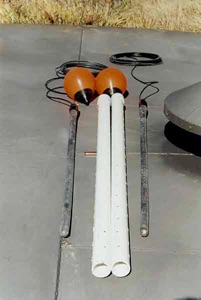

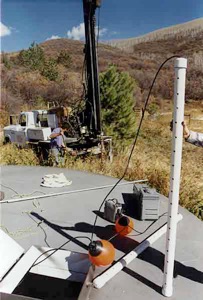

Two anodes were installed inside the tank in PVC holders. One anode was suspended in the water by floats. The other was clamped to steel bracing.

Each PVC holder has holes drilled in it so that the electric current can flow from the anode to the tank wall and supports.

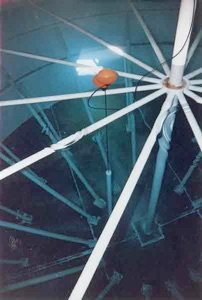

View of anode eight feet deep suspended by two floats.

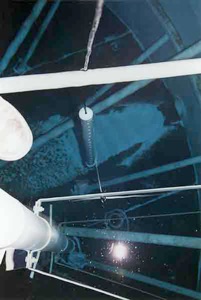

View of second anode eight feet deep in the PVC holder.
